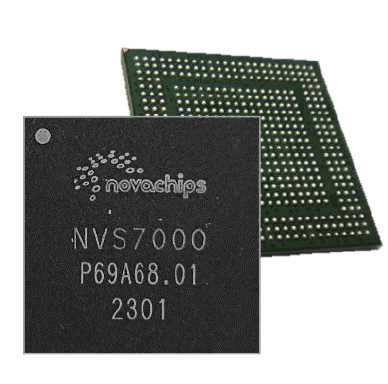

Flash Storage Processor
(NV7X)
Specifications
Host Interface:
- PCIe Gen4 x4 (64Gb) with NVMe 1.4 (HMB/CMB/PMR for high performance enterprise application)
- SATA Gen3 (6Gbps) for legacy interface product
- USB 3.2 Gen2 (10Gb) for portable storage application
Memory Interface:
- 3DNAND TLC/QLC, Programmable command method for next-generation NAND and Compatible with NAND Interface ONFI 4.2 & 5.0 up to 2.4GT/s
- NAND ECC 4KB LDPC (Hard/Soft Decision) capable to support 1e-2 RBER
- LPDDR4/5 up to 128Gb capacity via 3.2G/4.8G with RS error correction
Reliability:
- Enhanced NAND Reliability with Dynamic Wear Leveling and Refreshing
- Intelligent Sudden Power-off Recovery by firmware and hardware
- End-to-End Data Protection
- Smart Peak Power Control
- Operating Temperature (Commercial 0 ~ +70°C and Industrial -40 ~ +85°C)
Low-Power Consumption Design:
- Smart Peak Power Control
- Low Power Design – HW Controlled IO/Low Clock & MCU
- Supports ASPM : L0/L1/L1.1/L1.2 (PCIe only), DEVSLP (SATA only)
Security and others:
- Full Disk Encryption (ATA SET SECURITY, TCG Opal 2.0, or Host Key Encryption)
- AES-256 (FIPS-197 certified), ECB/CBC/XTS
- NVS-RNG (ENT (P) certified)
- Other cryptographic functions (SHA3-384/512, ECDSA, PBKDF)
Package and Interface (-S for SATA, -P for PCIe, -U for USB):
- NV7X-S/P (BGA, 15 x 15mm with 441 balls) with DRAM
- - NV7X-S/P/U (BGA, 9 x 12mm with 289 balls) DRAMless
Get the latest product features and specifications here for the Flash Storage Processor (NV7X)

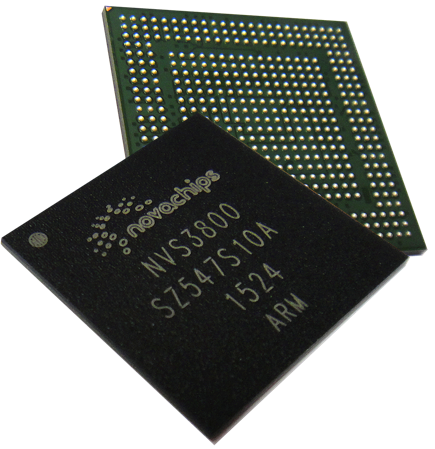

Flash Storage Processor
(NVS3800-37/39/57/59)
Specifications
Host Interface:
- SATA 6Gb/s, 3Gb/s and 1.5Gb/s
- Native PCIe Gen2 x2/x4, NVMe
NAND Flash Memory Support:
- 1y/1x/2x/3x nm SLC/MLC/eMLC/TLC from All NAND Vendors
- ONFI 2.0/3.0 and Toggle 1.0/2.0 Interface up to DDR-533
- HLNAND Interface with up to DDR-667
- 4/8/16/32KB Page NAND
Max. Capacity:
- 4TB with ONFI NAND and Toggle NAND
- 24TB with HLNAND
Reliability:
- Up to 128bit BCH ECC & Enhanced ECC for Metadata, Max. 2KB Unit
- Enhanced NAND Reliability with Static & Dynamic Wear Leveling
- Read Refresh by Bit Error Monitoring
- 2 Dimension Data Randomization
- 2-level Bad Block Management
- Intelligent Sudden Power-off Recovery
- Data Path Protection (DPP)
- Hardware-based RAID
- End-to-end Data Protection
Low-Power Consumption Design:
- Smart Peak Power Control
- Low Power Design – HW Controlled IO/Low Clock & MCU/HW Read-retry/28nm Process Technology
- Supports ASPM : L0/L1/L1.1/L1.2 (PCIe only), DEVSLP (SATA only)
Security:
- Full Disk Encryption with AES 128/256, XTS-AES
- ECB/CBC/CRT Modes Support
- TCG OPAL 2.0
Package:
- 508-ball CABGA, 17 x 17mm, 0.65mm Ball Pitch
Get the latest product features and specifications here for the Flash Storage Processor (NVS3800-37/39/57/59)

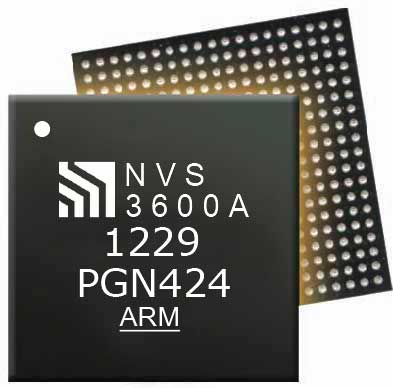

Flash Storage Processor
(NVS3600)
Specifications
Host Interface:
- SATA 6Gb/s, 3Gb/s and 1.5Gb/s support
- Fully compliant with SATA 3.0 / ATA-8 ACS2 Standard
- Asynchronous signal Recovery
- Native Command Queuing (NCQ) : up to 32 commands
- Power Saving Modes : HIPM, DIPM (Partial / Slumber mode)
Max Performance (based on NVS3600):
- Sustained Read & Write : Max. 510MB/s (CDM, Seq, Random)
- Random Read IOPS : over 70,000 (@4K blocks, IO Meter QD16)
- Random Write IOPS : over 70,000 (@ 4K blocks, IO Meter QD16)
Flash Memory Support:
- 2x/3x/4x/5x nm SLC / MLC / eMLC from all SSD vendors
- ONFI Async and Sync / Legacy and Toggle Interface
- Hybrid NAND Mode ( Up to 4 other kinds of NAND)
Reliability:
- Up to 64bit BCH ECC & Enhanced ECC for Metadata
- Enhanced NAND Reliability with Static & Dynamic wear leveling
- Read Refresh by Bit Error Monitoring
- 2 Dimension Data Randomization
- 2-level Bad Block Management
- Against Sudden power-off and Recovery
Low-Power Consumption Design:
- Peak Power Control
- Low Power Design
Security:
- Full disk encryption
- AES128/256 ECB/CBC/CTR
- TCG OPAL (since Dec., 2013)
NVS3615
(Entry)
Max Capacity:
- Up to 160GB
(5channel x 4ways)
Package:
- 289-pin FBGA
- 12 x 12mm
- 0.65mm pitch
No External DRAM:
- Embedded mDDR
Application:
- mSATA, NGFF
- Ultrabook Cache, CFast
- Other mobile devices
NVS3600 (Mainstream)
Max Capacity:
- Up to 640GB
(10channel x 8ways)
Package:
- 508-pin CABGA
- 17 x 17mm
- 0.65mm pitch
External DRAM Support:
- mDDR x32 or
mSDR x32 - 256Mbit to 2Gb
Application:
- 1.8inch, 2.5inch SATA
- PC, Desktop
- Enterprise
Get the latest product features and specifications here for the Flash Storage Processor (NVS3600)
