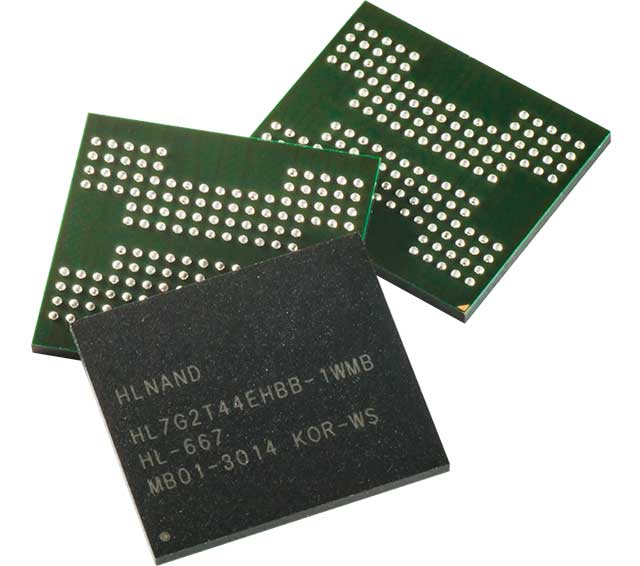

Next generation Flash delivering superior scalability, performance and reliability over Flash storage systems that use conventional NAND Flash devices.
![Express Drive](img/mcp_package.jpg)
Unique Architecture for High Performance and Extreme Capacity

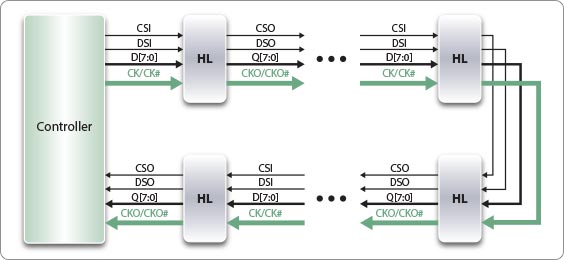

HLNAND is built upon a unique daisy-ring architecture that outpaces the parallel bus architecture used in industry standard NAND Flash products
- Point to point ring topology implemented for flash
- Each device drives a single point load
- Virtually unlimited number of devices per channel
- ODT not required
![](img/controller_564x260.jpg)
![Express Drive](img/bridge-chip.png)

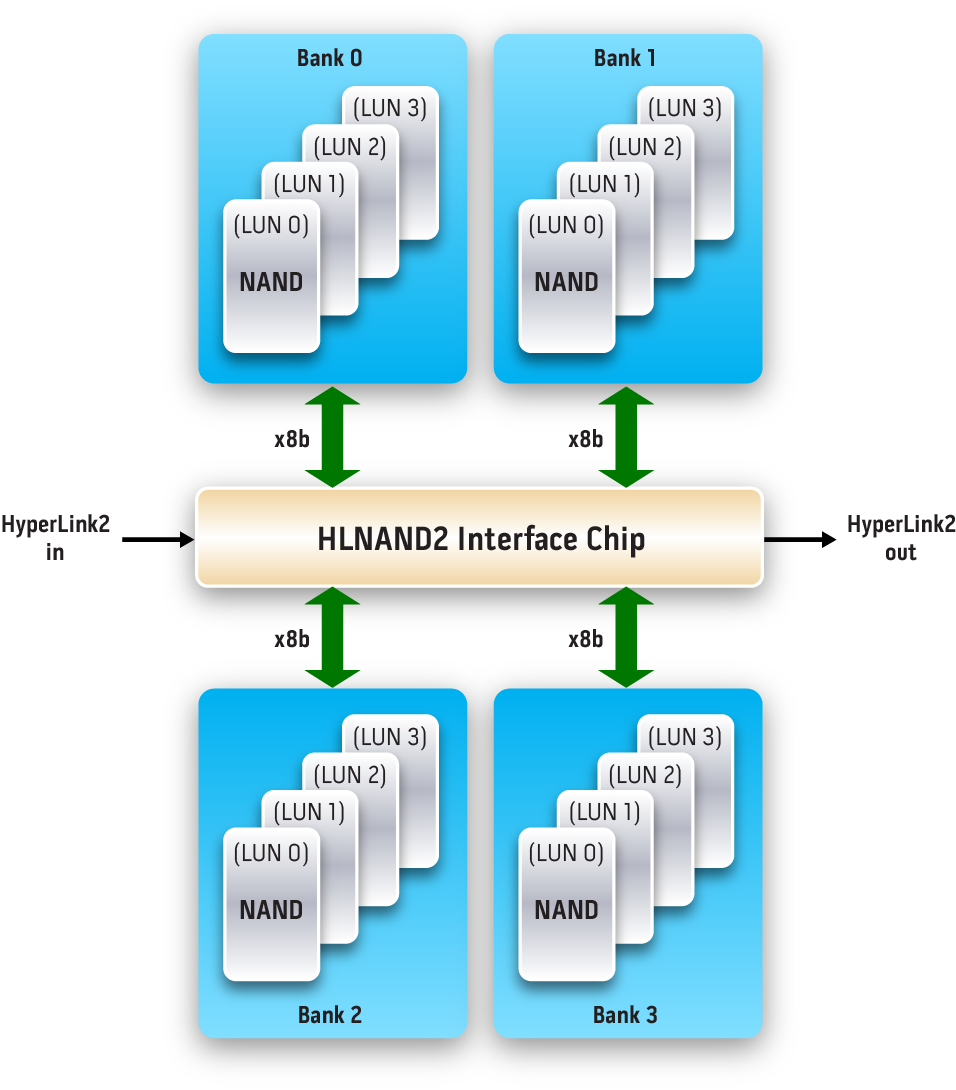

- Innovative Architecture: Hyper-Scale Memory Architecture
- High Speed Interface: 533/667/800/1066/1333/1600 MT/s
- Low Power: Ring Topology without On-die Termination & Intelligent IO Switching Power Truncation
- Ideal Signal Integrity: Point-to-Point Daisy Chain for High Speed Channel
- NAND Agnostic: SLC, eMLC, MLC, TLC
- High Capacity: 1Tb & 2Tb HLNAND, 4Tb 3D HLNAND
Solid state storage for the future
Imagine what you can do
